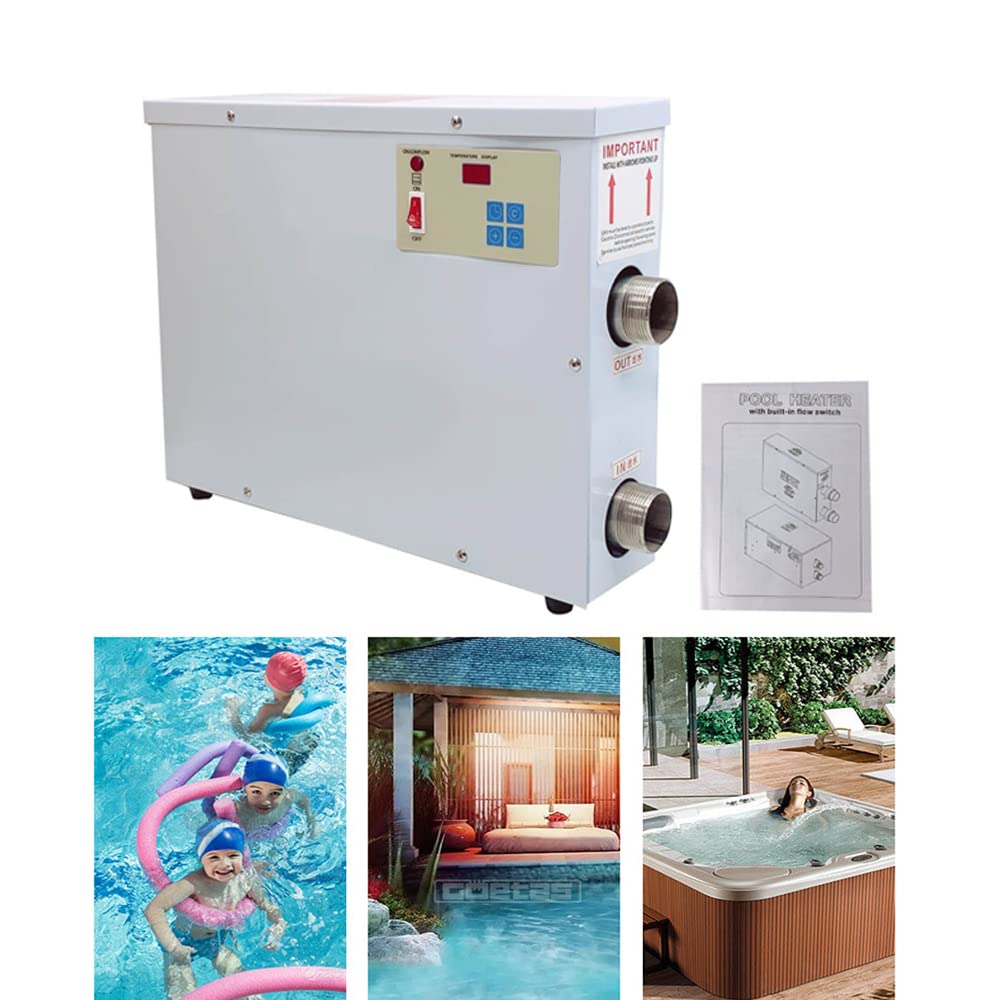

11KW 220V Electric Pool Heater with Digital Display - Above Ground & Inground Swimming Pool, Spa & Hot Tub Water Heater Pump - Touch Screen Thermostat Control for Year-Round Comfort
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:11181293
Product Description
Note: 1.This machine can be used with Single-phase 220V or dual-phase 110V2.please confrim the wire referring to the power of the unit,here are the current of different type of machine9KW/220V = 41A,about 41A11KW/220V =50A, about 50A15KW/220V =68A,about 68A18KW/220V =82A,about 82ASpecifications:Liner material: stainless steelVoltage: 220V (Transformer required)Power: 11KWPhase: single phaseConnection size: 40 mm (1.57 ")Machine size: 49 x 10 x 38 cm / L x W x H.Suitable for: hot tub & swimming pool equipmentDescription:Intelligent temperature control, stable performance, safe and reliableAutomatic constant temperature, can be set according to the required water temperature.The maximum set temperature is approx. 55 ℃.Safe and reliable, mechanical pressure switch.When the pressure is below the set value, the power supply is automatically switched off.Do not heat sea water or salt water.The thermostat must work with a water pump with an appropriate capacity.5.5KW-15KW heaters must operate with a pump with a water flow of at least 177 ft³ / hour (5m³/hour).18KW-36KW heaters must operate with a pump with a water flow of at least 353 ft³ / hour (10m³/hour).40KW-60KW heaters must operate with a pump with a water flow of at least 530 ft³ / hour (15m³/hour).5.5KW thermostat is suitable for ≤ 127 ft³ pool / 3.6m³The 9KW thermostat is suitable for a pool with ≤ 212 ft³ / 6m³The 11KW thermostat is suitable for a pool with ≤ 259 ft³ / 7.3m³The 15KW thermostat is suitable for a pool of ≤ 353 ft³ / 10m³The 18KW thermostat is suitable for a pool with ≤ 424 ft³ / 12m³Package in
Product Features
【Specifications】- Power 11kw 220v; Input Voltage AC 220V 50/60HZ; Pool Volume less than 1928 gal / 7.3m³; Power 11KW;Phase single phase;Connection size 40 mm (1.57 );Machine size 49 x 10 x 38 cm / L x W x H;Suitable for hot tub & swimming pool equipment.
【Installation】- With detailed installation instructions and two interfaces. It can be installed indoors or outdoors, fixed on a smooth and flat surface.
【Safety】- Thermostat will first reach the preset temperature, then stop working until the temperature dropped a few degrees, the thermostat automatically turns on
【Quality performance】- The temperature value of the heating session can be set by touching the screen of the LED screen temperature value. The electric pool heater for above ground pool automatically controls the temperature range of 68°F-131°F (20°C-55°C). The timer can be adjusted from 1-15 hours,
【Wide Application 】- This high-quality electric pool water heater is commonly used indoors and outdoors, especially for swimming pools, SPA pools, and bathtubs.
