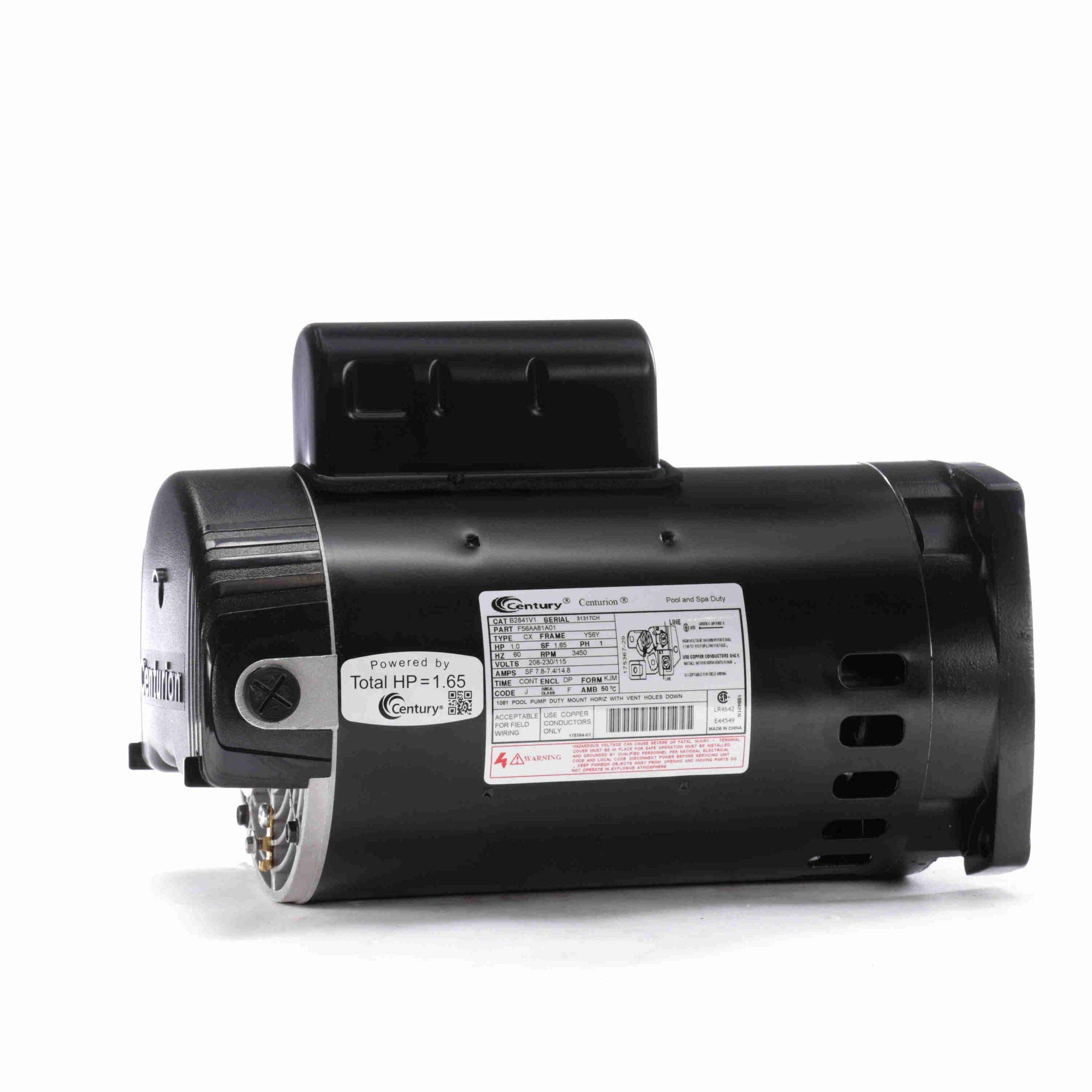

1 HP Threaded Shaft Horizontal Pool Pump Motor, 1.65 SF - High Efficiency Swimming Pool Water Circulation System for Inground & Above Ground Pools

Product Description

High efficiency is the biggest highlight of this motor! Enjoy your time in the swimming pool by having this enduring motor. Generating an output power of 1 horsepower, this motor is an asset! Product Features:. Switchless threaded shaft pool pump motor. Comes with voltage change device and stainless steel shaft. Includes open and accessible terminal board and wiring compartment. Contains open drip-proof technology Additional Features:. Output horsepower: 1.0 horsepower. Current: SF 7.8-7.4/14.8 A. Frequency: 60 Hz. Service Factor: 1.65. Duty: continuous. Frame size: Y56Y. Protector: thermally protected. UL: recognized. Output KW: 0.75 kW. Voltage: 208-230/115 V. Speed: 3450 rpm. Ambient temperature: 50°C. Phase: 1. Insulation Class: F. Enclosure: drip proof. CSA: Y. Electrical type: permanent split capacitor, single or dual voltage. Rotation: counterclockwise pump end. Motor orientation: horizontal. Opp drive end bearing: BALL. Shaft type: threaded. Poles: 2. Mounting: round. Drive end bearing: BALL Dimensions:. Frame length: 9". Shaft extension: 0.91". Overall length: 13.40". Shaft diameter: 0.62" Material(s): stainless steel. Frame material: rolled steel
