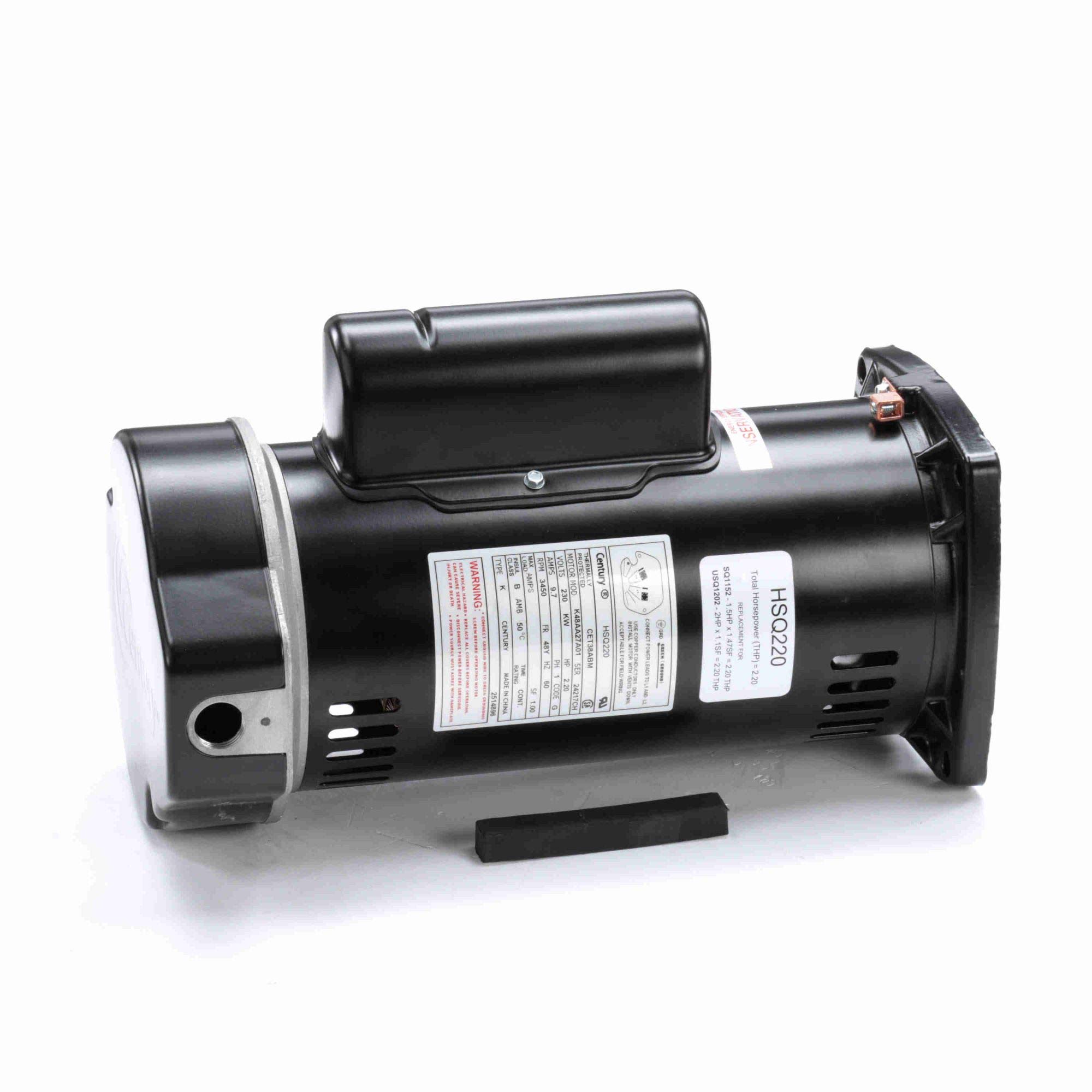

2.20 HP Square Flange Threaded Shaft Horizontal Pool Pump Motor - Durable Swimming Pool Water Circulation for Inground & Above Ground Pools

Product Description

Energy-efficient motors are a must if you don't want to spend much time maintaining the pools. The performance shortens run times and reduces energy consumption leading to lower operating costs. With this motor, you don't have to compromise with performance and quality. Product Features:. Stainless steel shaft for corrosion protection. New triple seal protection on pump end bearing. Voltage change device. Premium sealed 203 bearings both ends. Definitive shaft access (7/16" wrench). Open accessible terminal board and wiring compartment for easy installation. Pump motor has a threaded shaft that allows for convenient and direct mounting Additional Features:. Output horsepower: 2.20 horsepower. Frequency: 60 Hz. Current: 9.7 A. Service factor: 1. Output KW: 1.6 kW. Voltage: 230 V. Speed: 3450 rpm. Poles: 2. Phase: 1. Insulation class: F. Mounting: square flange. Drive end bearing: ball. Enclosure: open drip proof. Ambient temperature: 50°C. Frame: 48Y. Thermal protection: automatic. Motor orientation: horizontal. Electrical type: capacitor start capacitor run. Rotation: counter clockwise pump end Dimensions:. Shaft diameter: 0.625". Shaft extension: 0.906". Frame length: 10.13" Material(s): stainless steel. Frame material: rolled steel
